PCB Fabrication
1–32 layer boards with FR-4, high-TG, halogen-free and high-frequency materials.
10+ years electronics manufacturing · Shenzhen EMS
From PCBA engineering to box-build production.
PCB, SMT, DIP, BOM sourcing, testing, coating, tooling and box-build—supporting no-MOQ prototypes through volume production.
01005Min. placement
3–5MPoints / day
24hFastest prototype
TURNKEY EMS
Manufacturing overview
PCBASMT / DIP · BGA · 01005
EnclosuresMold · CNC · Die-casting
QualityAOI · ICT · FCT · Burn-in
ONE-STOP ELECTRONIC MANUFACTURING
One-stop EMS manufacturing
SMT & DIP Assembly
Support for 0201 / 01005, 0.2 mm fine-pitch BGA and lead-free dual-wave soldering.
Component Sourcing
Authorized sourcing, in-stock inventory, traceability and turnkey BOM kitting.
Test, Box-Build & Coating
ICT, FCT, programming, burn-in, conformal coating and final assembly.
FACTORY PHOTOS
Factory Photos
Explore our production lines, testing and engineering workstations, and material storage areas.
6 of 26 photos shown

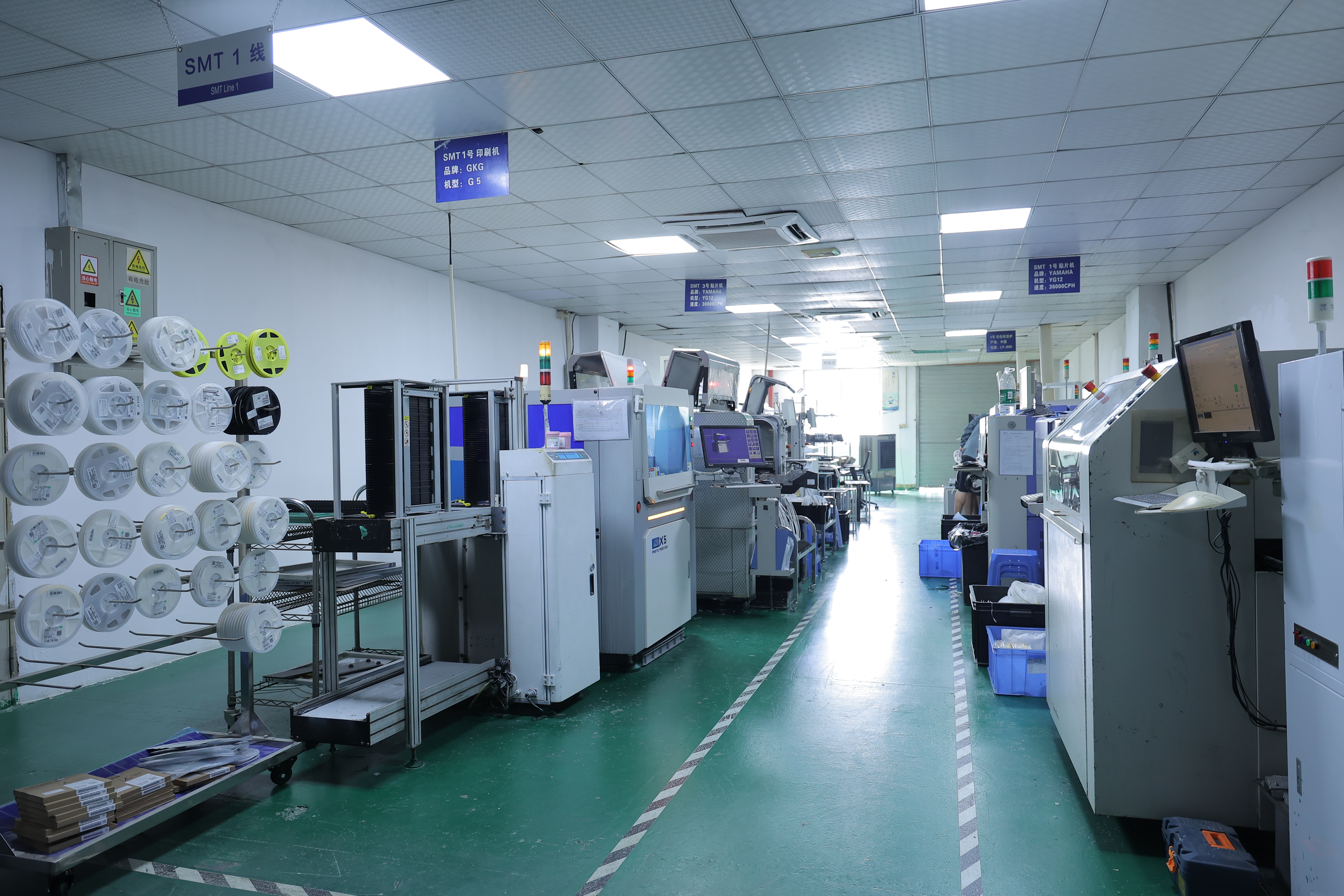

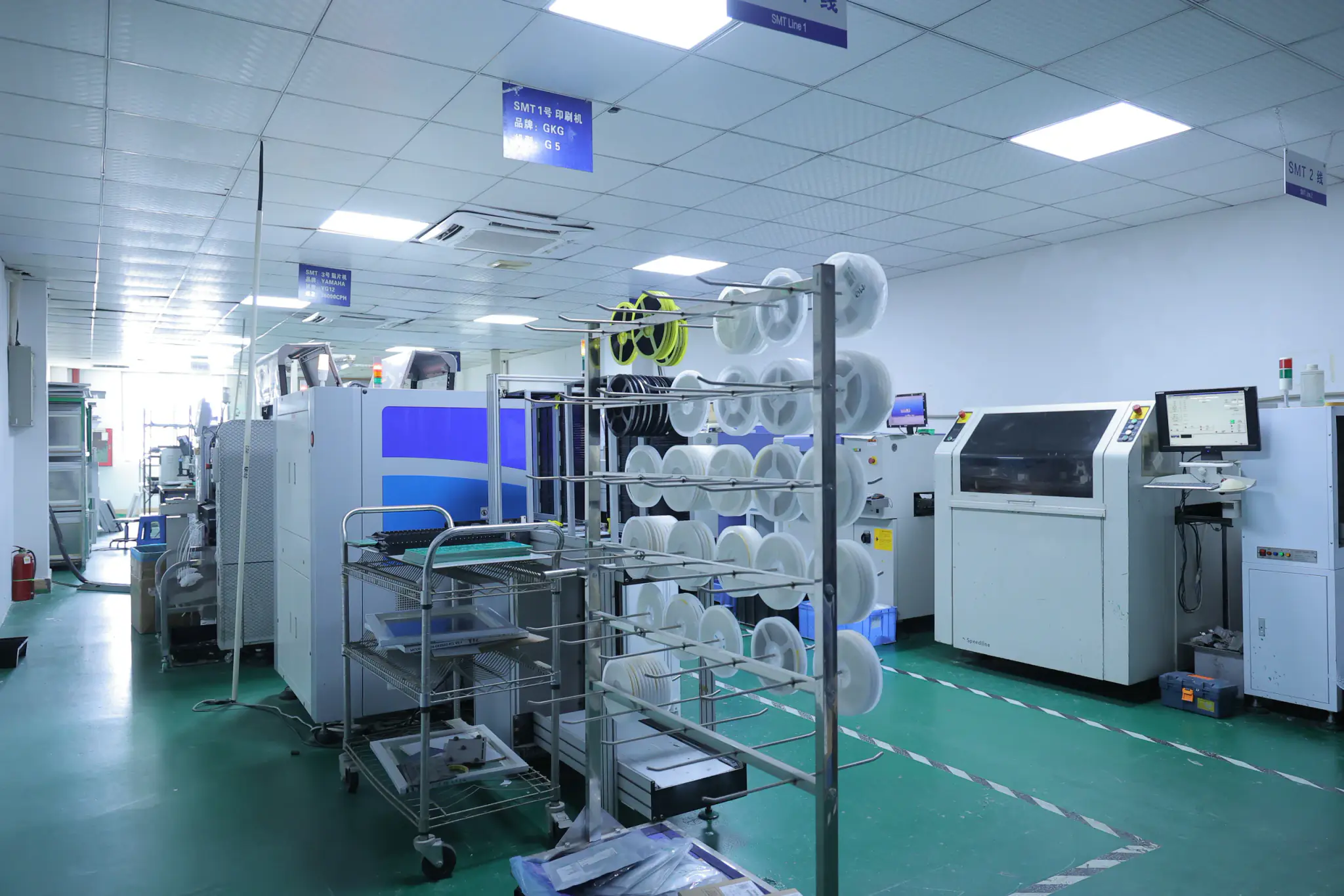

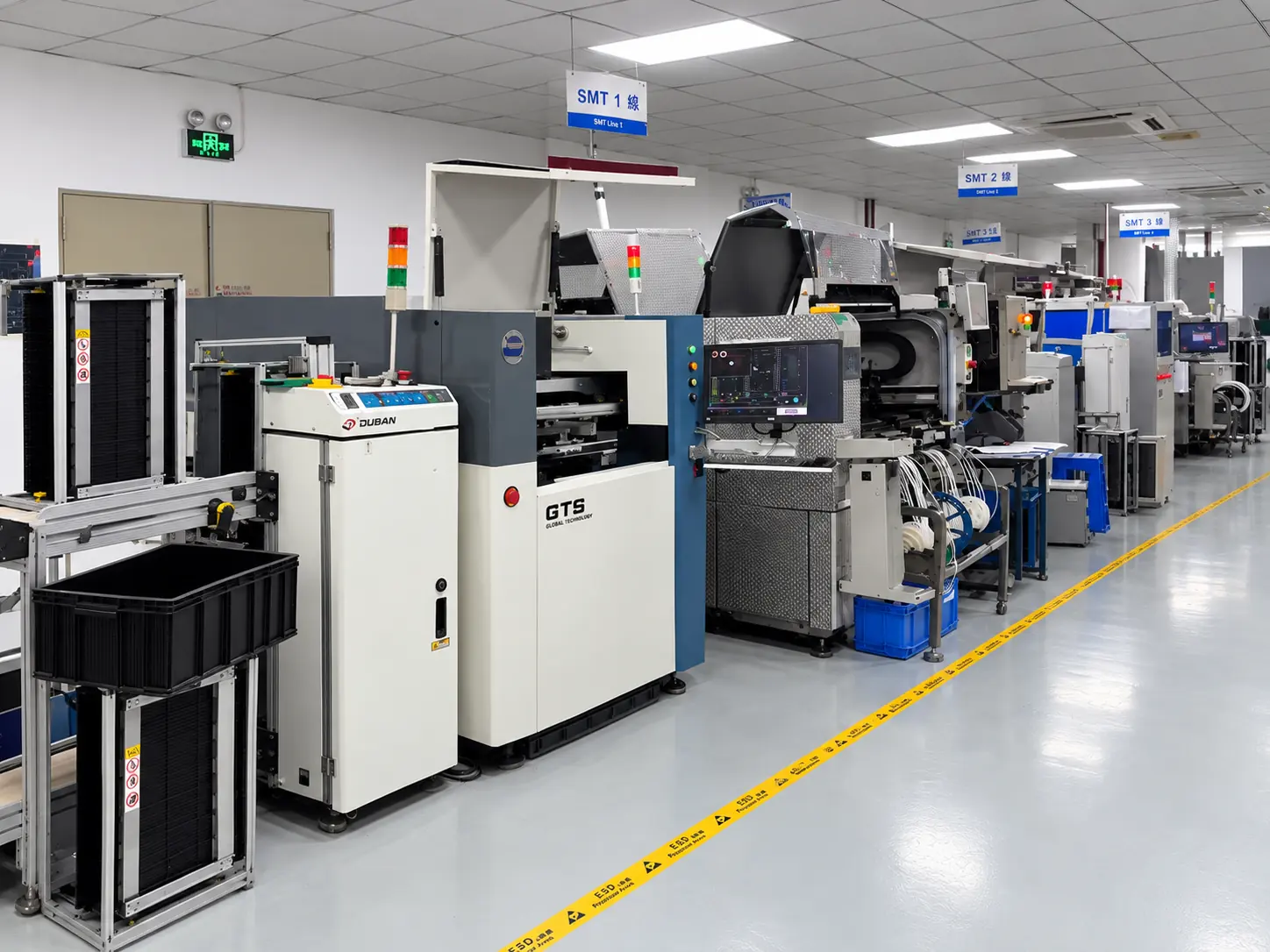

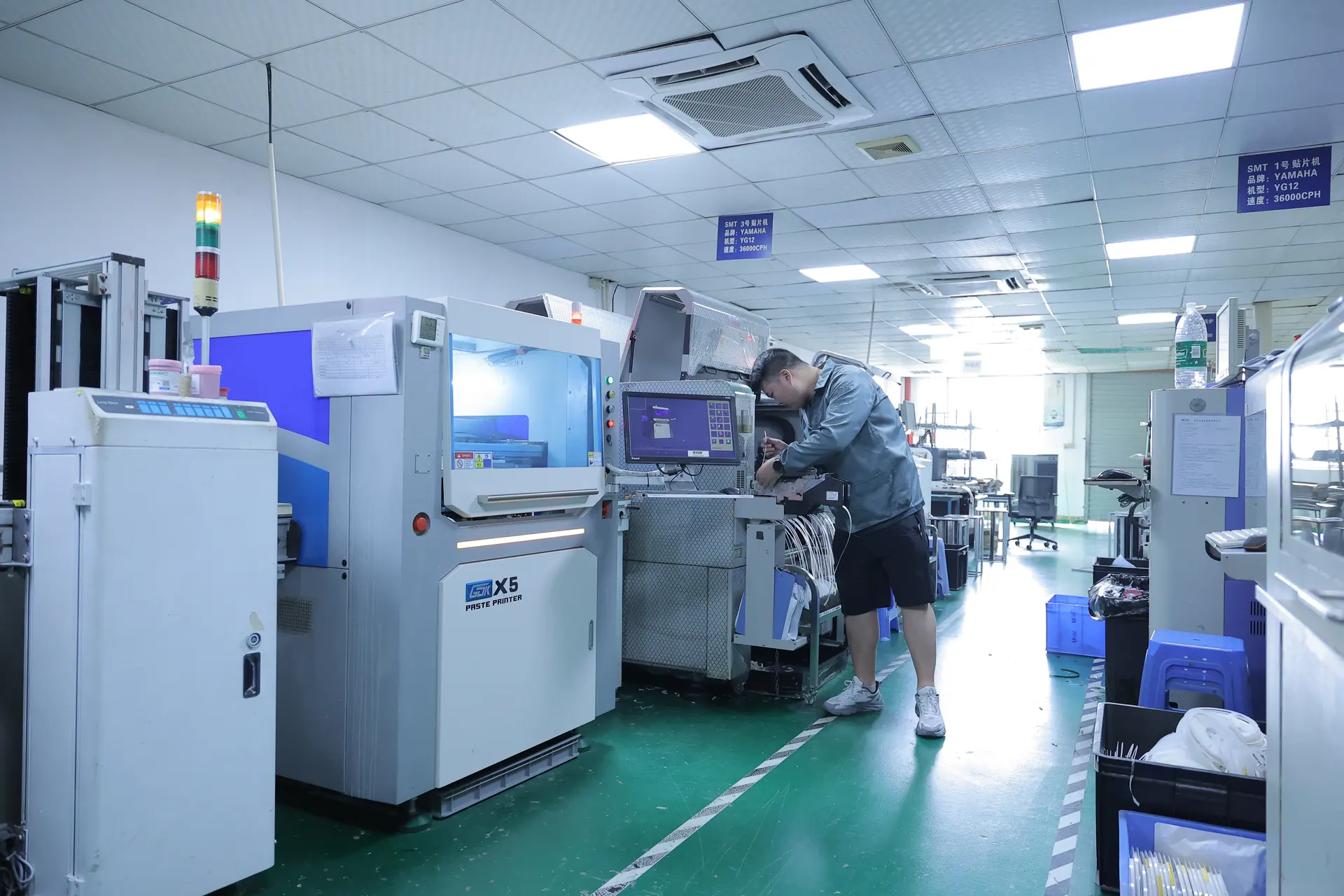

SMT production workshop
Surface-mount equipment, workshop aisles and operating stations.

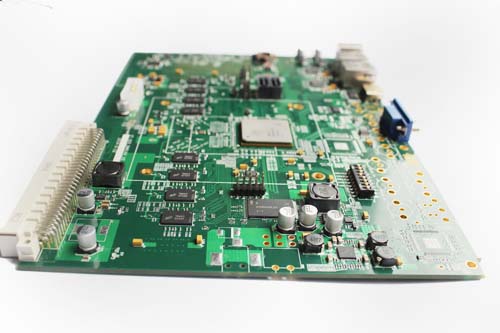

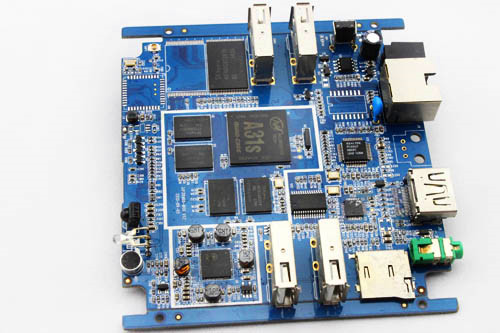

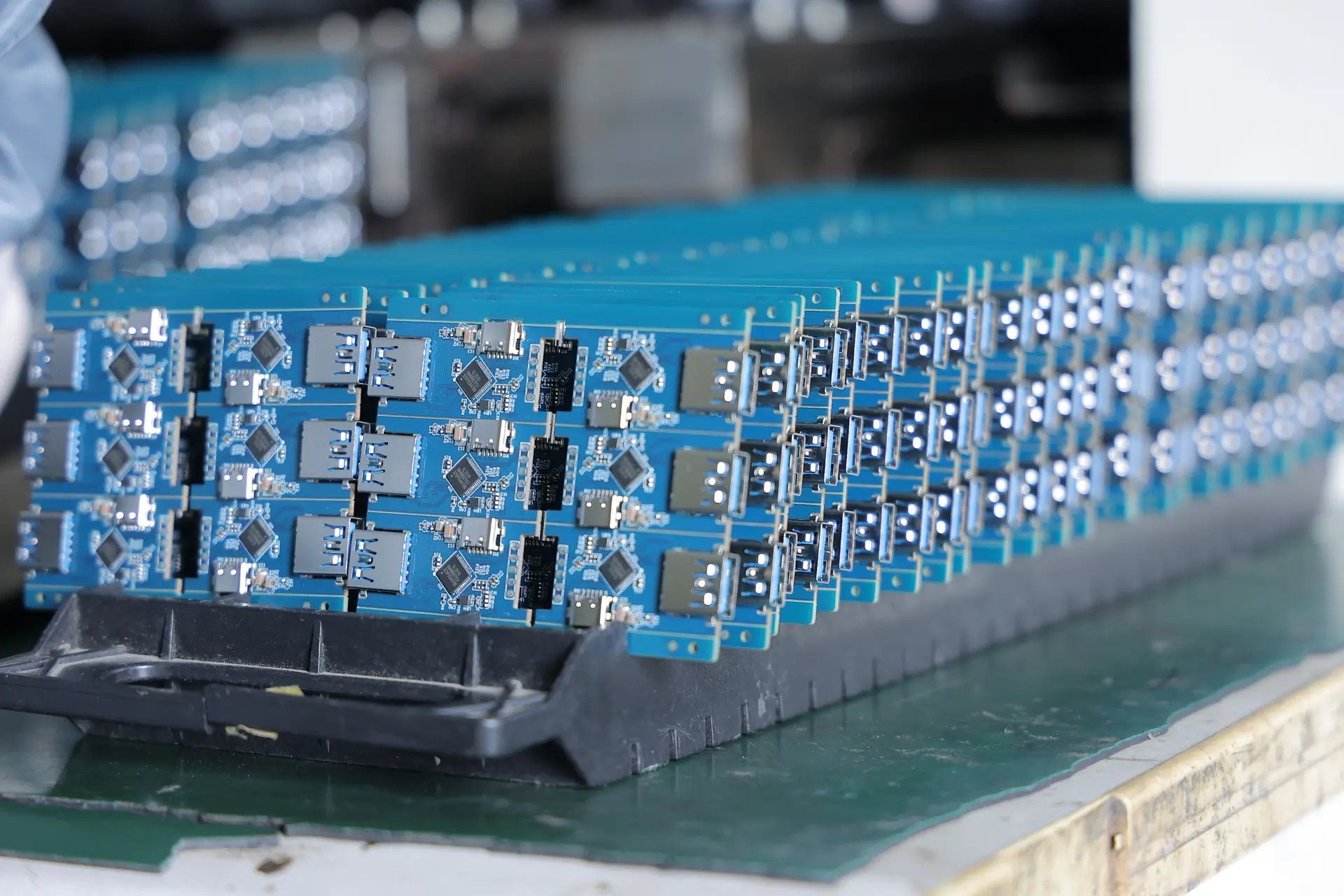

PCBA production boards
Circuit boards and mounted components during production handling.

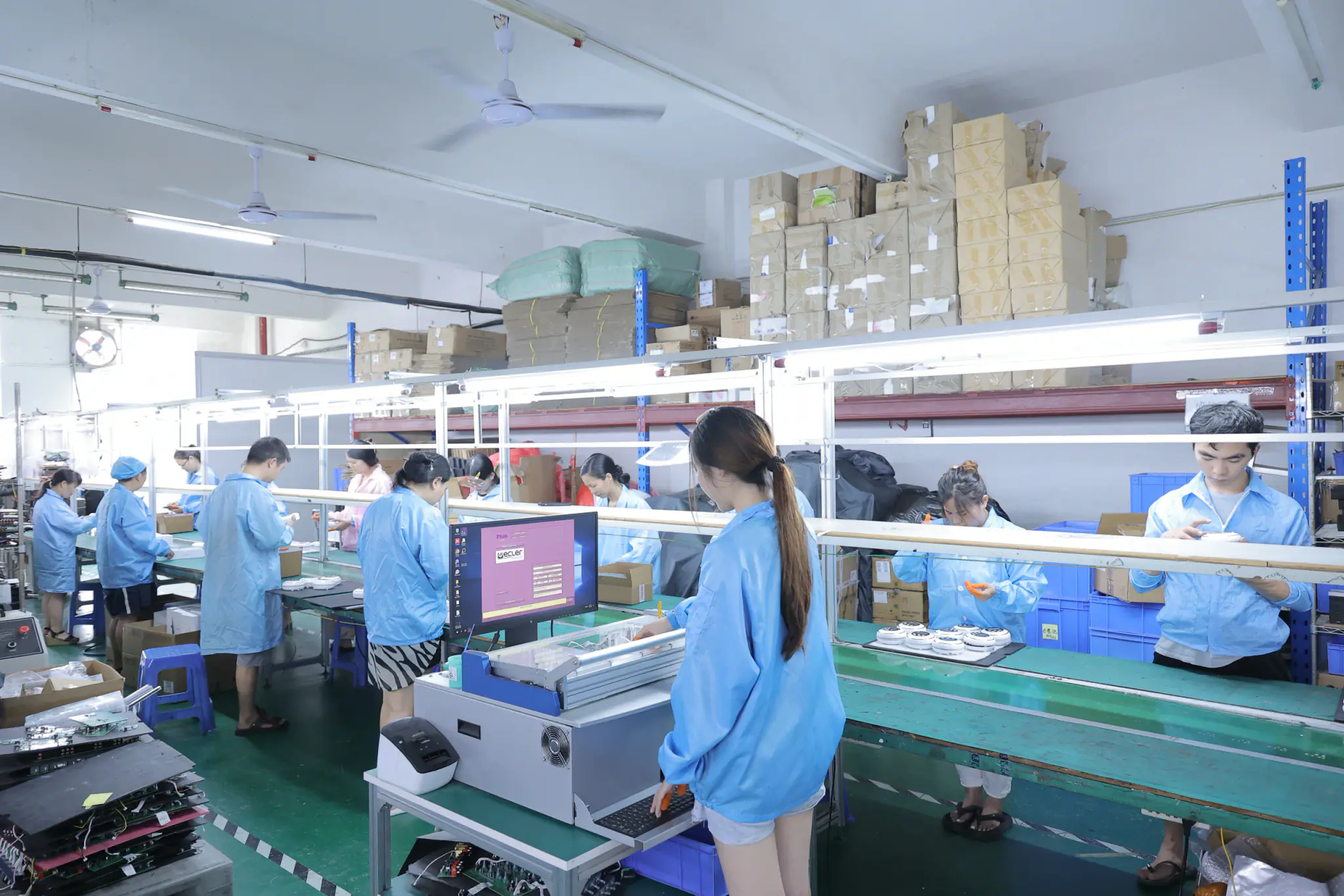

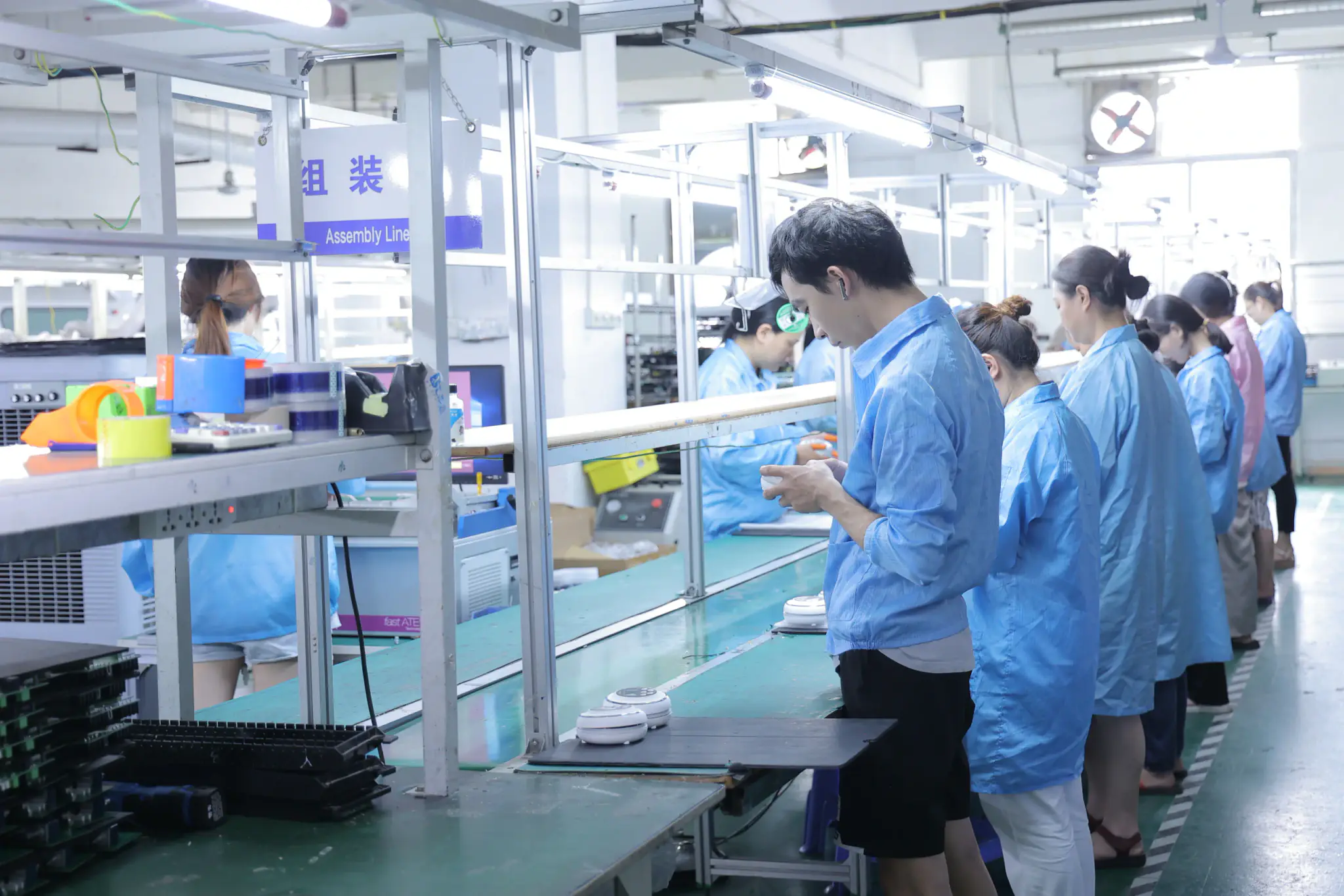

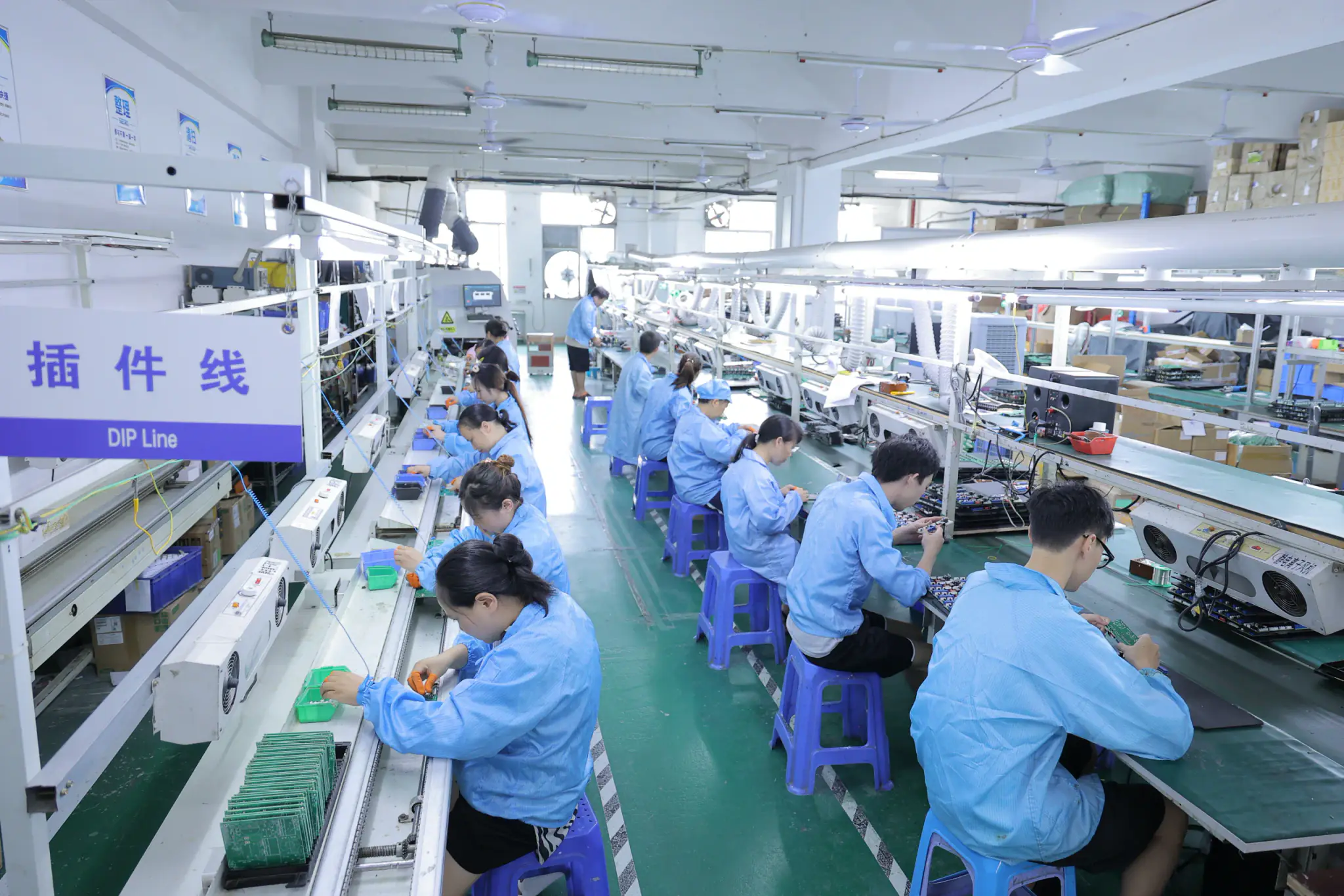

Assembly workshop overview
Assembly lines, operator workstations and material handling areas.

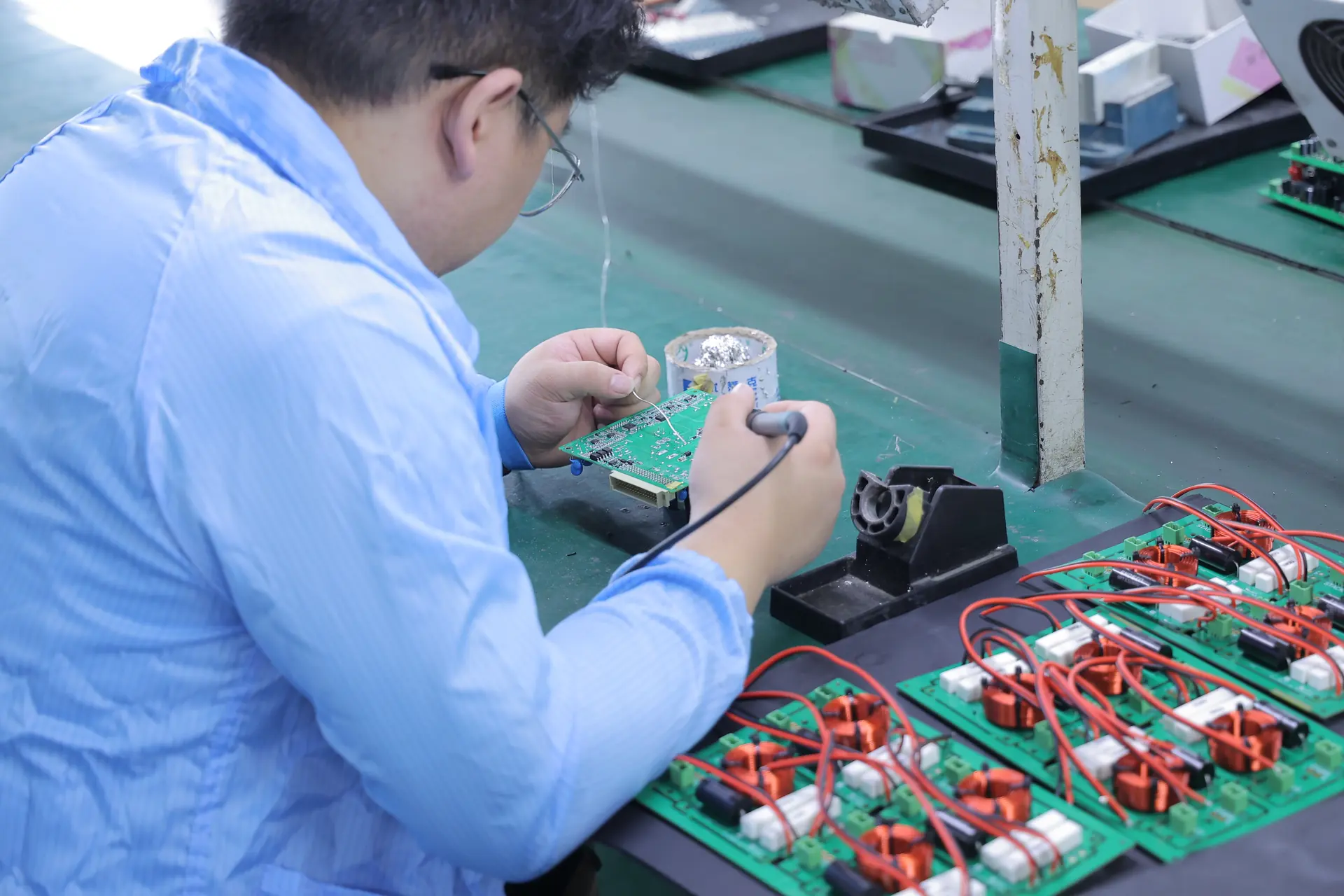

PCB hand soldering
An operator soldering wires and completing manual PCB soldering work.

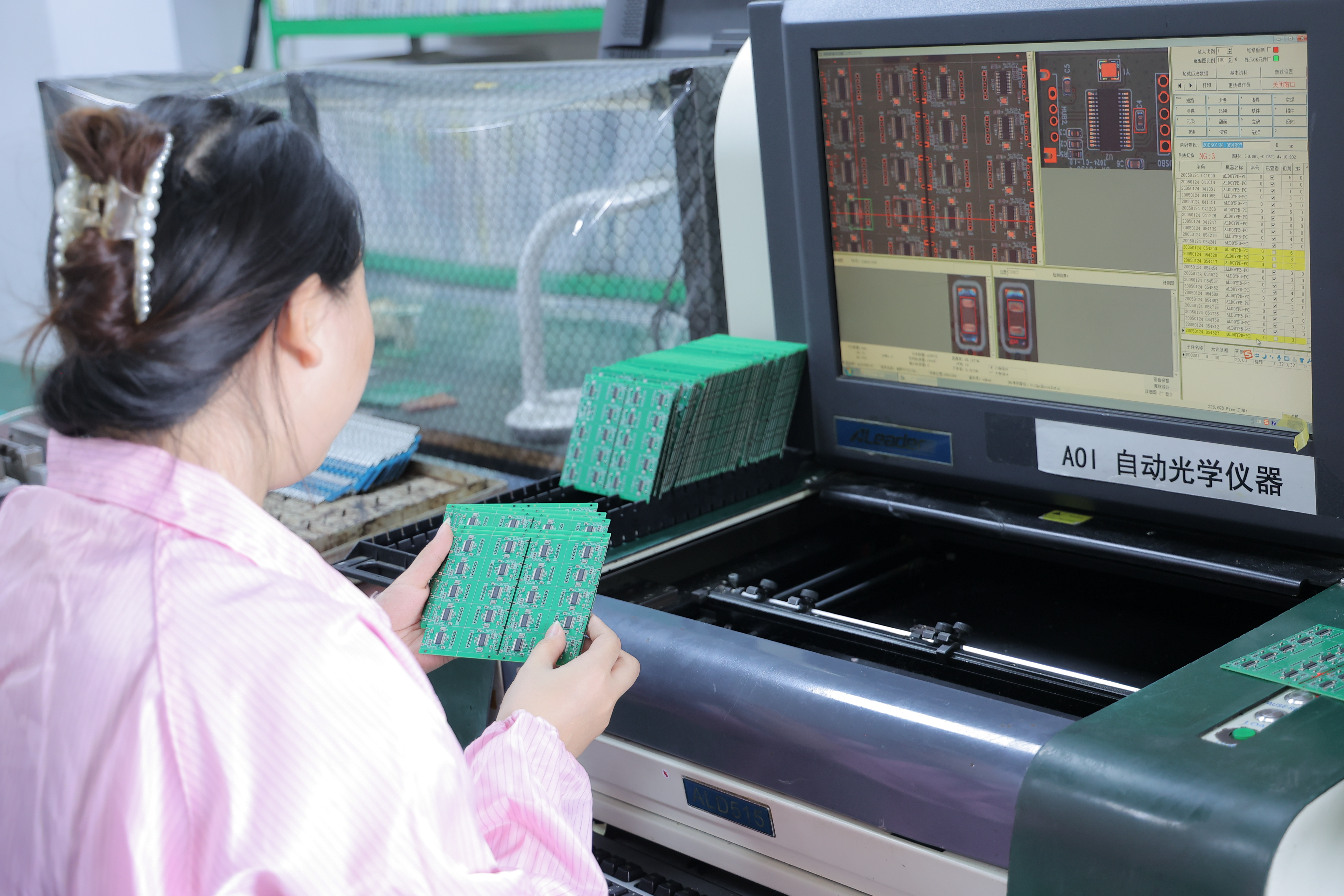

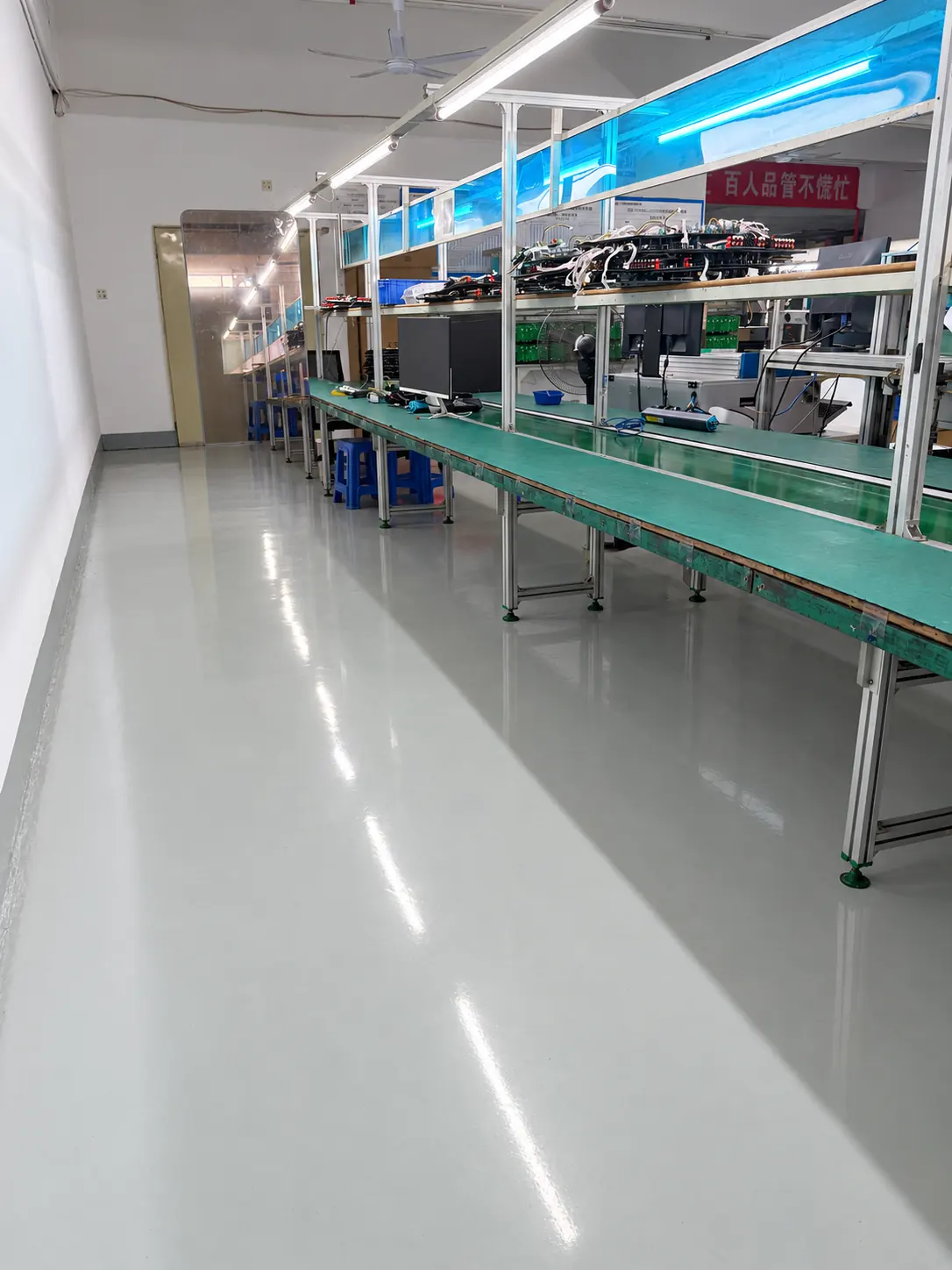

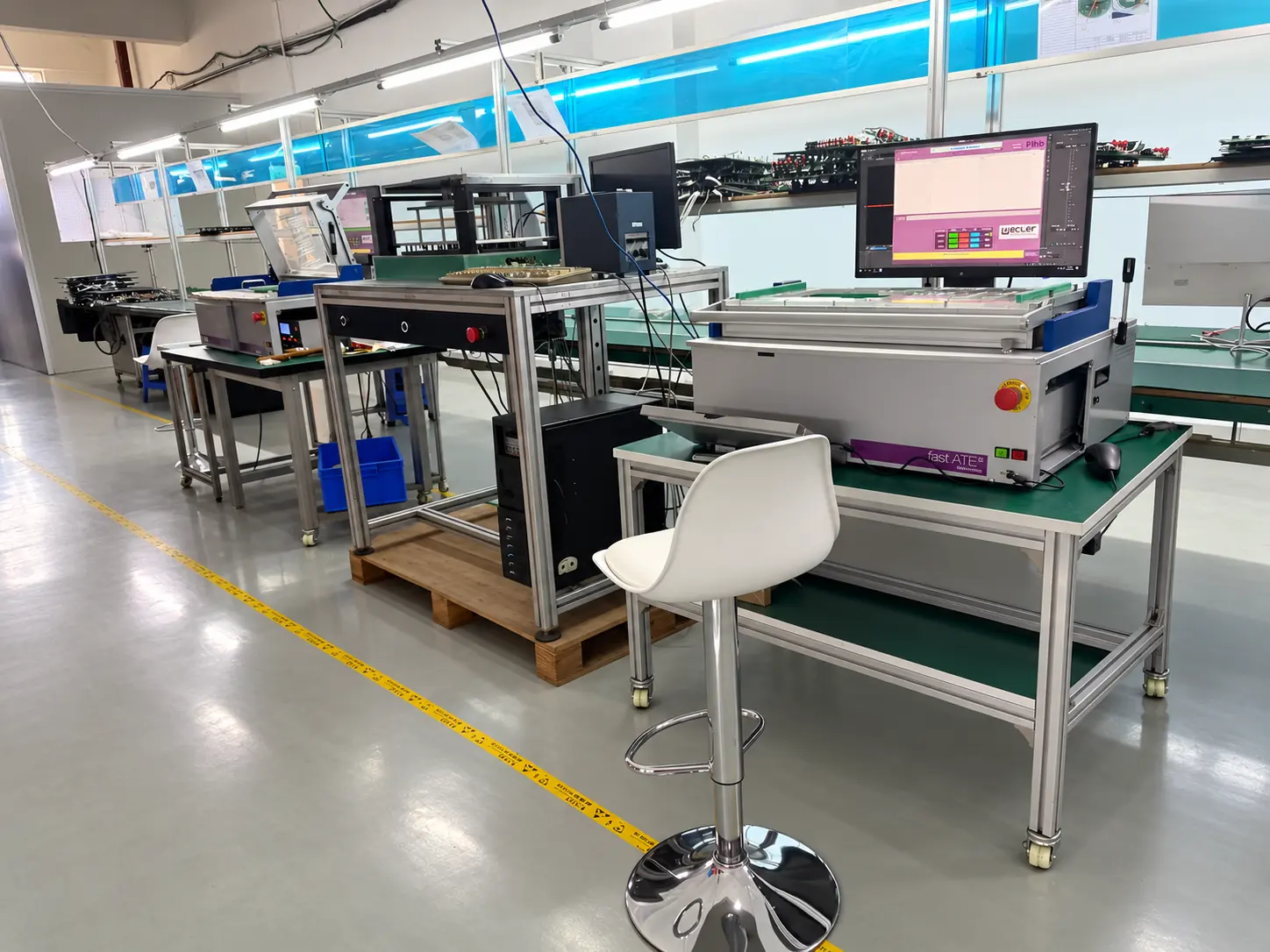

PCB inspection workstation
Inspection equipment, an operator terminal and a PCB checking station.

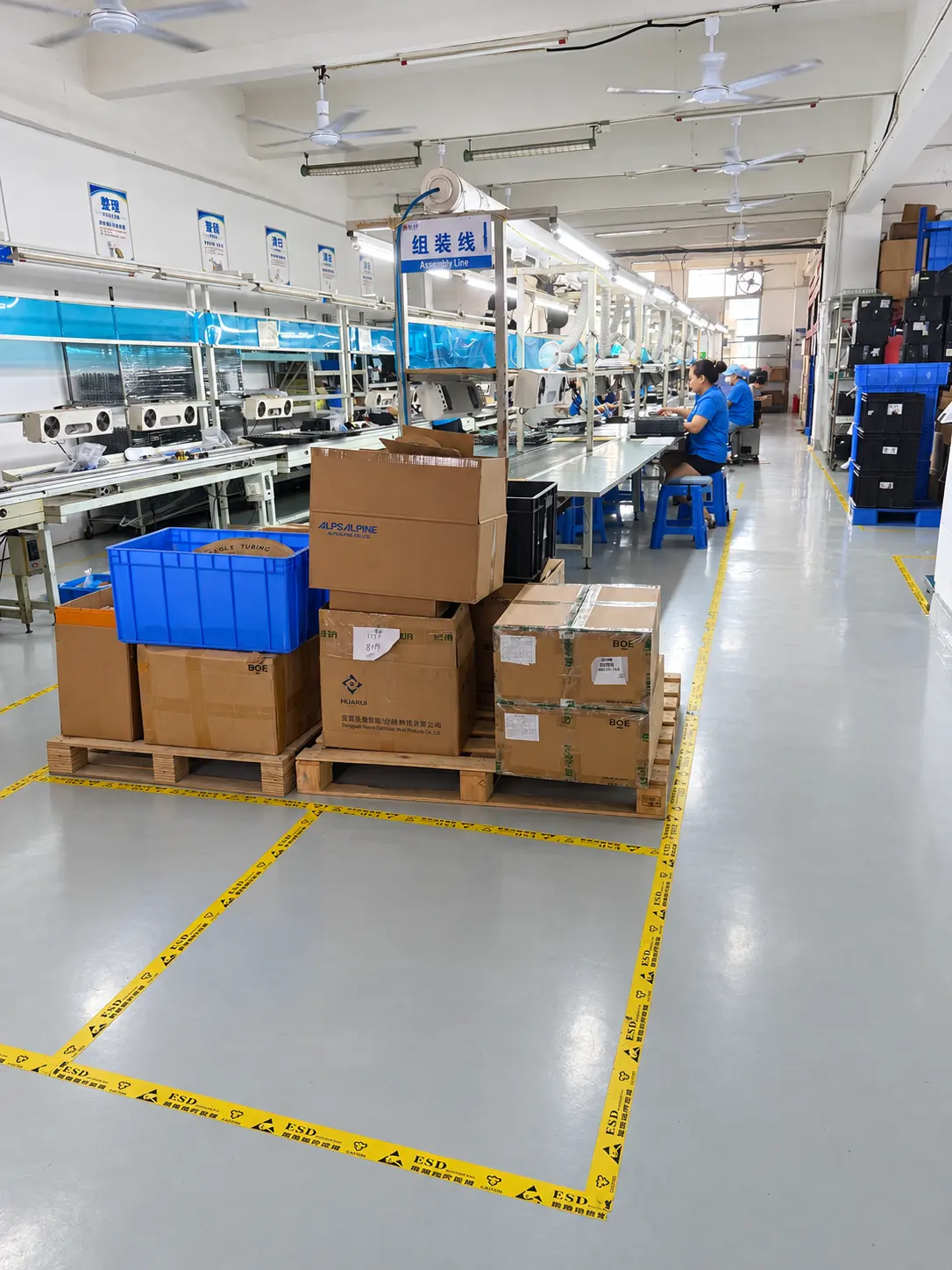

Box-build assembly line
Box-build workstations, supporting fixtures and production materials.
SUCCESSFUL CASES
Representative engineering cases

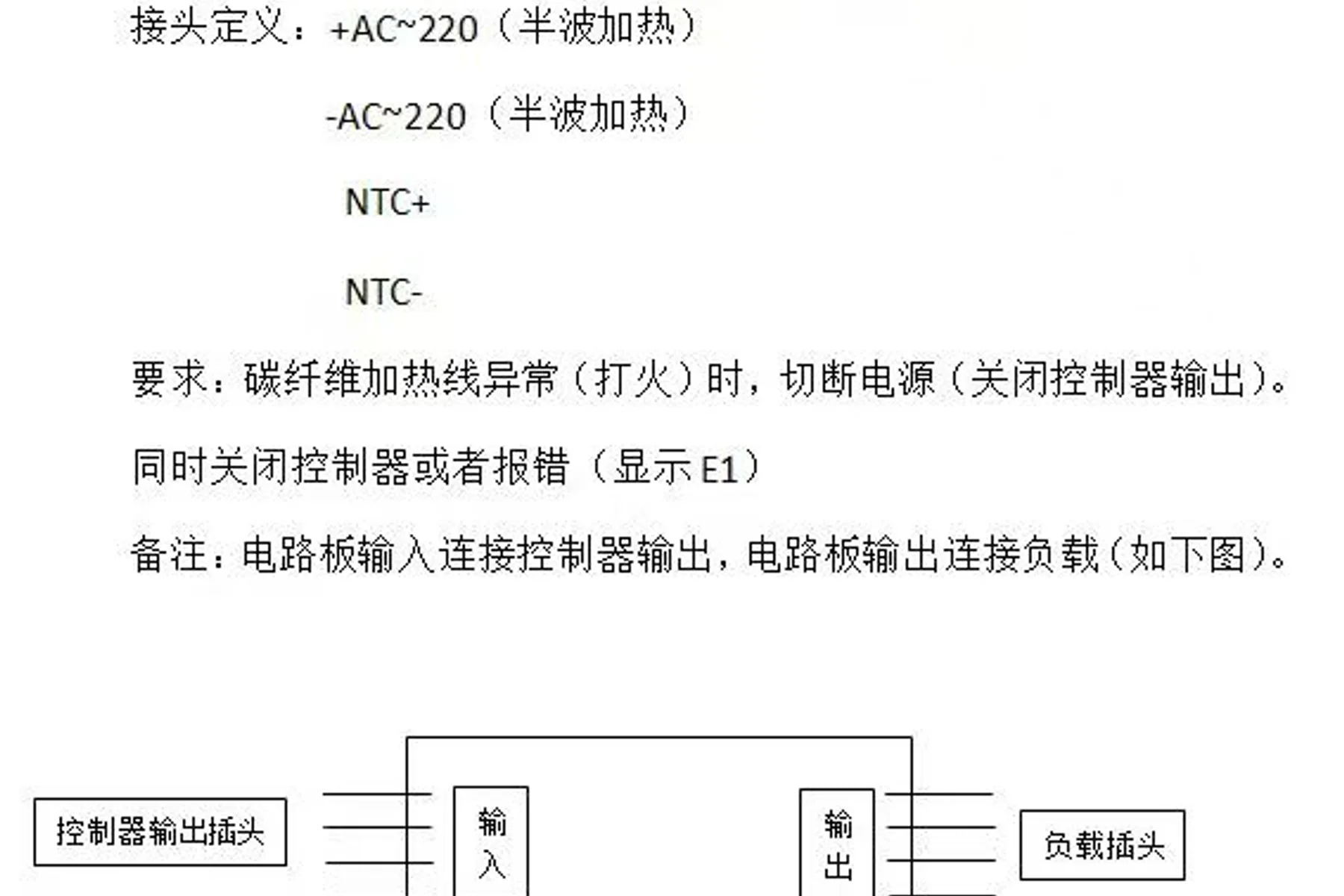

Carbon-fiber Heating Controller
AC 220 V heating control, NTC sensing, fault protection and high-voltage FCT validation.

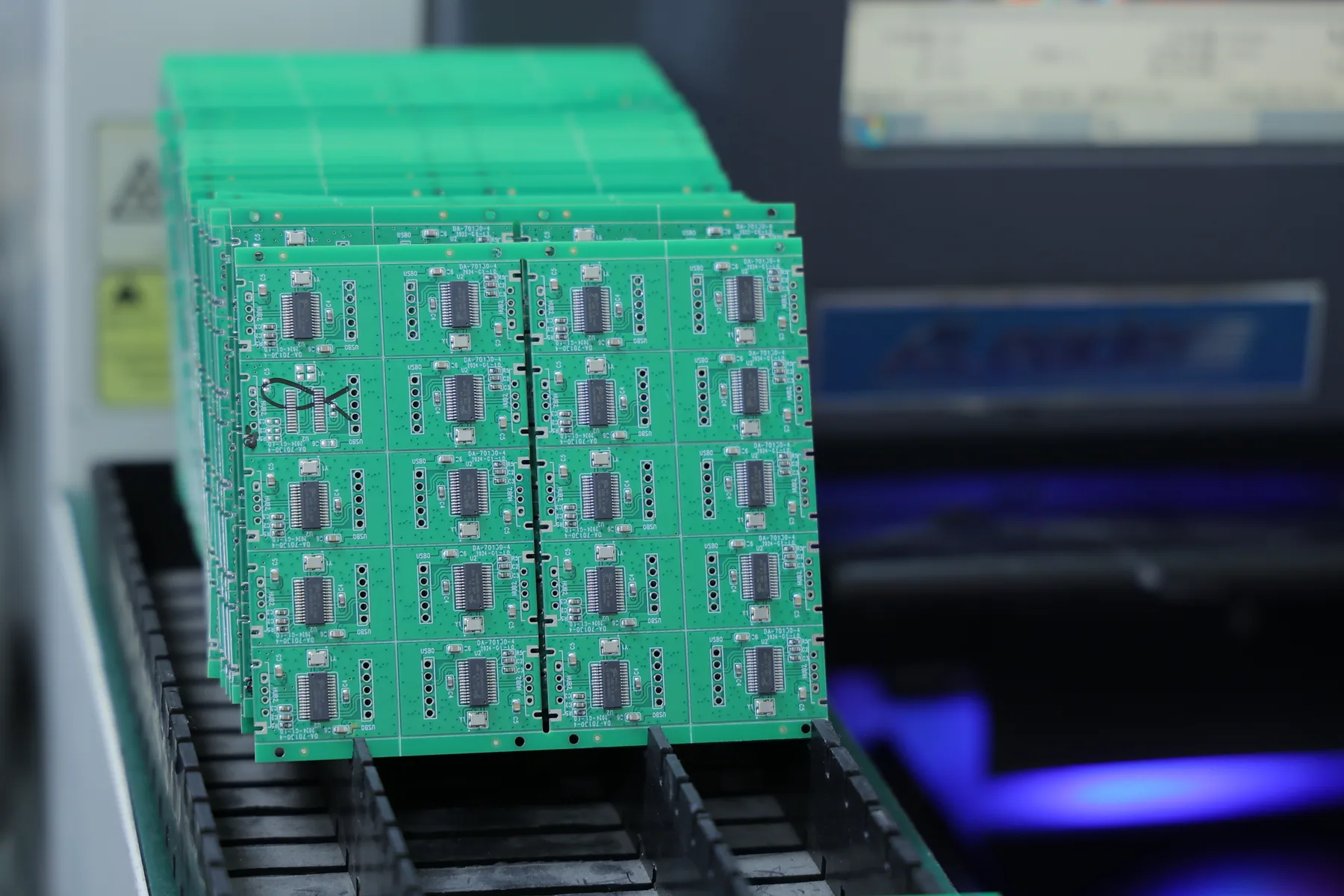

Industrial Mainboard & Harness
A 180 × 100 mm controller integrating 24 V power, USB, RTC and custom harnesses.
Arc Detector ODM Development
From MCU hardware and firmware and three prototypes to SMT, testing and box-build introduction.
QUALITY CONTROL
Quality control across every production stage
From incoming materials and first article through AOI, functional test, burn-in and outgoing inspection.
Incoming inspection
Verify model, quantity, appearance, lot and critical component source.
First article
Confirm polarity, position, solder joints and process settings before volume placement.

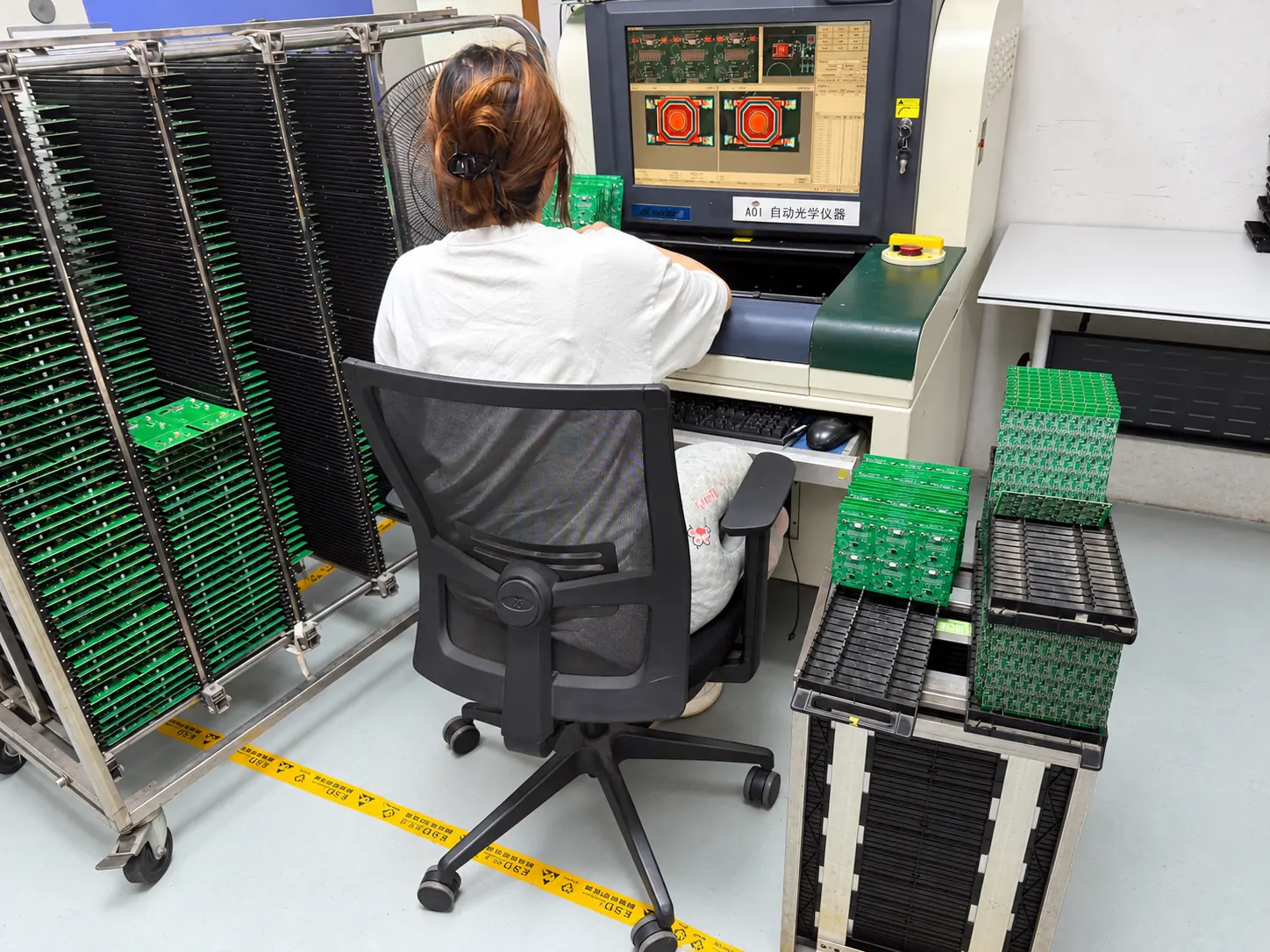

Optical inspection
Detect missing parts, offset, polarity, bridges and solder anomalies.
Circuit & functional test
Validate programming, interfaces, load and functions against the test procedure.
Burn-in testing
Validate stability through continuous operation and temperature observation.
Outgoing inspection
Recheck functions, appearance, labels, packaging and ESD requirements.
