Manufacturing Solutions
Explore representative PCBA, PCB design, equipment, and finished assembly projects delivered by ULIKE.
Featured cases
featured
A quick entry into representative PCBA, CAD and equipment projects.
PCBA

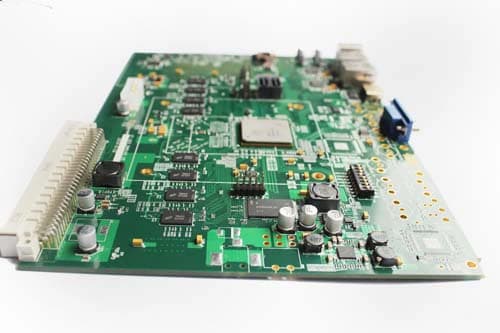

PCBA Showcase
PCBA Showcase is a ULIKE PCBA production reference. It covers board assembly, SMT and DIP process control, component coordination, inspection, testing, and production handoff.
PCB Design
High-speed PCB Design In PADS
High-speed PCB Design In PADS is a ULIKE PCB engineering reference. It covers schematic review, PCB layout, stack-up planning, impedance-aware routing, manufacturability review, and engineering documentation.
Equipment Assembly
SMT Production Equipment
SMT Production Equipment is a ULIKE equipment and assembly reference. It covers production equipment, finished product assembly, tooling coordination, testing, packaging, and delivery support.
PCBA Cases
PCBA
Turnkey board manufacturing, assembly, testing, and quality-controlled delivery.
PCBA Showcase
- video communication board programming and functional testing
- 2.0 mm PCB thickness
- 12-layer board
- 0.3 mm BGA ball pitch
Camera Mainboard Assembly and Testing
- SDI-to-HDMI camera module production
- 1080p progressive scan, 16:9, 1920 x 1080 resolution, 67.5 kHz line frequency
- HDMI high-definition multimedia interface
- SDI standard data interface

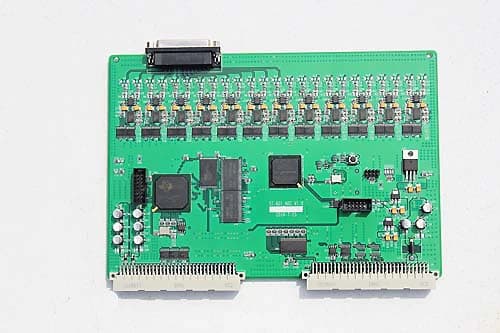

Waterproof Treatment For Power Communication Board
- waterproof treatment for a power communication board with conformal coating
- 1.6 mm, 4-layer PCB
- SMD:0402
- double-sided SMT assembly
More cases
11 additional project records- Anti-copy IC Marking Removal PCBAdouble-sided SMT assembly with 0.4 mm pitch QFP IC and IC marking removal / PCBA manufacturing and assembly reference
- High-power IoT Dimming Control Boardhigh-power IoT dimming board / 83 mm x 210 mm size
- Android TV Box Mainboardset-top box mainboard / BGA ball placement
- DIP Wave Soldering Power BoardX-ray equipment power board processing with DIP wave soldering / 2.00 mm board thickness
- Medical Testing Equipment Power ModuleGerman-imported Weller soldering tools / 0.3 mm solder thickness requirement over a 10 mm x 800 mm area
- Dual-process Red Glue and Solder Paste PCBAred glue and solder paste dual-process production / 1.6 mm board thickness
- Automation Equipment Control Moduleautomation equipment control module / 1.6 mm board thickness
- Fine-pitch BGA and WiFi Module Assembly0.4 mm pitch BGA module soldering and Wi-Fi module assembly / PCBA manufacturing and assembly reference
- Double-sided BGA HDMI Industrial Control Boarddouble-sided BGA SMT assembly / HDMI industrial control board reference
- Single-sided and Double-sided FPC SMTQFN chip placement for a SIM card adapter / mobile phone touch-panel SMT assembly
- Hotel Smart Switch Complete Solutionturnkey production for hotel, villa, home and IoT control switches / three-gang switch control board reference
PCB Design Cases
CAD
PCB design, layout, stack-up, impedance, and manufacturability engineering references.
High-speed PCB Design In PADS
- 24-hour quick-turn delivery
- advanced technology products
- high-layer backplanes, HDI boards, high-frequency boards, high-TG boards, halogen-free boards, flexible boards, and rigid-flex boards
- 16-layer PCB with 2 mil line width and spacing

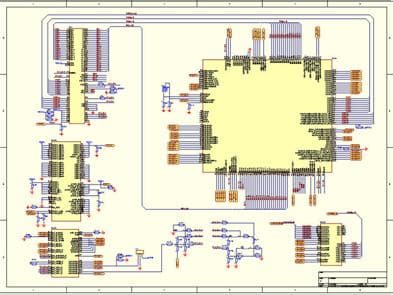

DXP Schematic and Layout Design
- power management schematic design in DXP2004
- USB 3.0 adapter board layout on a 4-layer impedance-controlled PCB
- equipment communication connection
- PCB design and engineering reference

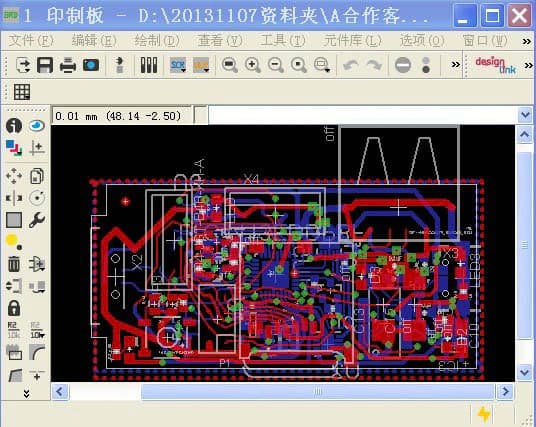

Eagle Layout PCB Design
- FR-4 high-TG base material
- 135.26 mm x 112.70 mm size
- ENIG surface finish
- outer layer line width / spacing: 3.0 / 3.80 mil
More cases
10 additional project records- Single-sided PCB Boardsingle-sided PCB / single-layer reference
- Multilayer PCB Boardmultilayer PCB / quick-turn board support
- High-frequency PCB Boardsurface finishes: HASL, lead-free HASL, ENIG, full-board gold plating, connector gold plating, immersion tin/silver, OSP blue mask, and carbon ink / 2-10 layer multilayer boards in volume, with small-batch 6-layer and 8-layer HDI support
- 4.00mm Special-shaped PCB Boardspecial-shaped TG170 8-layer PCB / 2-10 layer multilayer boards in volume, with small-batch 6-layer and 8-layer HDI support
- 4.00mm Special-shaped PCB Board Samplespecial-shaped TG170 8-layer PCB / PCB design and engineering reference
- Reverse Engineering PCB DesignPCB reverse schematic reconstruction, PCB design optimization, and BOM preparation / PCB design and engineering reference
- Layered PCB Stack-up Designmultilayer PCB design is usually recommended when clock frequency exceeds 5 MHz or signal rise time is below 5 ns / PCB design and engineering reference
- Single-sided and Double-sided FPC Manufacturingsingle-sided and double-sided FPC manufacturing with SMT soldering / PCB design and engineering reference
- PowerPCB Optical Communication Board8-layer optical fiber video communication mainboard / PCB design and engineering reference
- PCBA Design Sample8-layer optical fiber video communication mainboard / PCB design and engineering reference
Assembly Cases
DEVICE
Production equipment, finished assembly, tooling, and factory capability references.

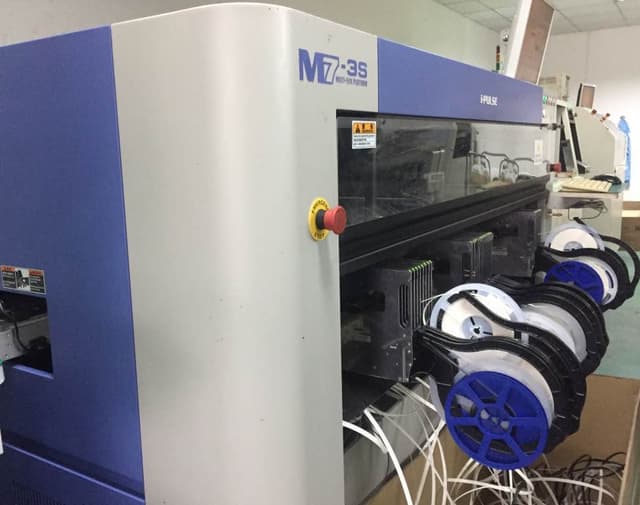

SMT Production Equipment
- 2 YAMAHA IPLUS M7 machines
- 2 YAMAHA IPLUS M1 machines
- 2 YAMAHA IPLUS FV-7100 machines
- 2 MSF SMT placement machines
PCBA Finished Product Assembly
- complete sourcing and processing for PCB, PCBA, aluminum enclosures, plastic enclosures, and electronic materials
- assembly, testing, programming, packaging, and domestic or international shipment support
- Equipment and finished assembly reference
- Production line, tooling, and process coordination
Octa-core Android TV Box
- RK3368 with Android 5.1
- 4K ultra-HD player
- factory-direct supply
- Equipment and finished assembly reference
