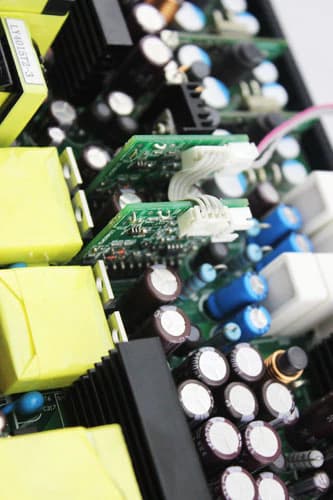

Medical Testing Equipment Power Module
Medical Testing Equipment Power Module is a ULIKE PCBA production reference. It covers board assembly, SMT and DIP process control, component coordination, inspection, testing, and production handoff.
Ask About Similar Projects- CategoryPCBA Cases
- Project date2011-4-8 8:53:41
- Image records9
Process notes
- German-imported Weller soldering tools
- 0.3 mm solder thickness requirement over a 10 mm x 800 mm area
- high solder-pad smoothness requirements and added solder for high-current areas
- RoHS lead-free process
- PCBA manufacturing and assembly reference
- SMT/DIP process planning and production control
Delivery attention
- Confirm the approved BOM before purchasing, especially IC, connector and BGA alternatives.
- Keep one confirmed sample as the golden sample for programming, function test and appearance comparison.
- For repeat orders, keep the same stencil, fixture, test method and packing label requirements.
Project record
ULIKE managed this PCBA project with attention to board construction, component placement accuracy, soldering stability, test readiness, and delivery consistency. Key technical notes include: German-imported Weller soldering tools; 0.3 mm solder thickness requirement over a 10 mm x 800 mm area; high solder-pad smoothness requirements and added solder for high-current areas; RoHS lead-free process.
The work is suitable for customers that need reliable engineering review, production control, quality verification, and delivery handoff.
Image record

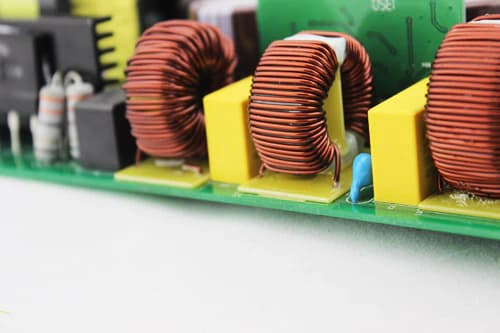

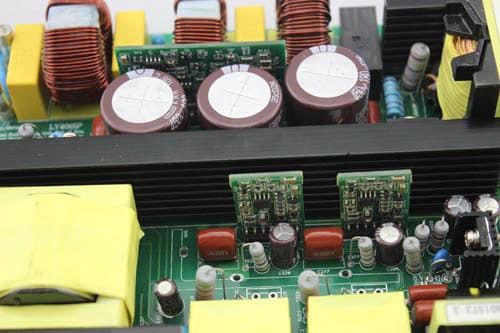

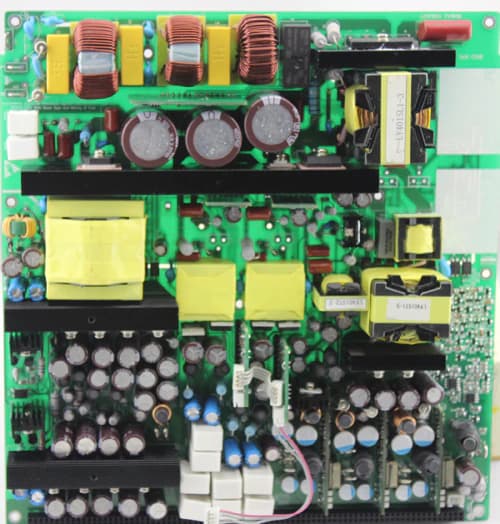

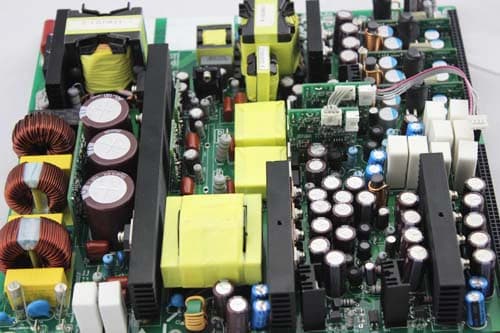

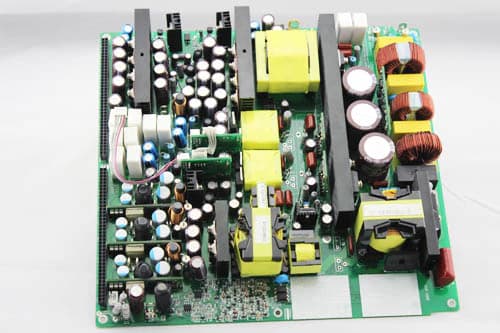

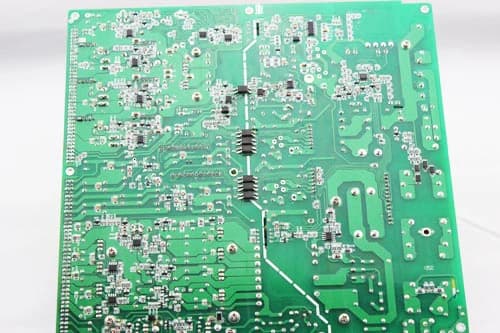

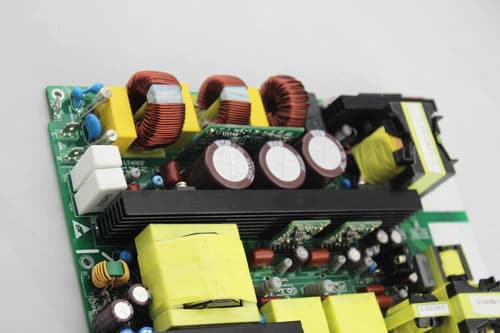

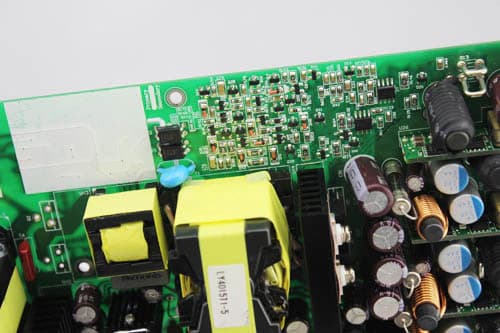

Photos are kept as production and project references.
