Dual-process Red Glue and Solder Paste PCBA
Dual-process Red Glue and Solder Paste PCBA is a ULIKE PCBA production reference. It covers board assembly, SMT and DIP process control, component coordination, inspection, testing, and production handoff.
Ask About Similar Projects- CategoryPCBA Cases
- Project date2011-4-8 8:53:41
- Image records7
Process notes
- red glue and solder paste dual-process production
- 1.6 mm board thickness
- size 245*160mm
- PCBA manufacturing and assembly reference
- SMT/DIP process planning and production control
- Functional verification and quality inspection support
Delivery attention
- Confirm the approved BOM before purchasing, especially IC, connector and BGA alternatives.
- Keep one confirmed sample as the golden sample for programming, function test and appearance comparison.
- For repeat orders, keep the same stencil, fixture, test method and packing label requirements.
Project record
ULIKE managed this PCBA project with attention to board construction, component placement accuracy, soldering stability, test readiness, and delivery consistency. Key technical notes include: red glue and solder paste dual-process production; 1.6 mm board thickness; size 245*160mm; PCBA manufacturing and assembly reference.
The work is suitable for customers that need reliable engineering review, production control, quality verification, and delivery handoff.

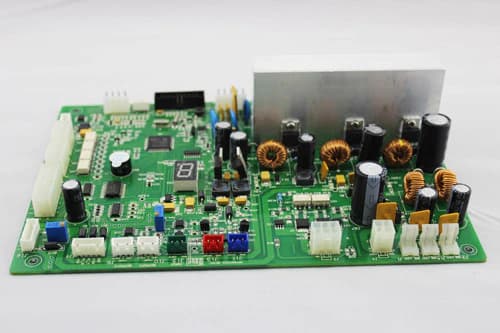

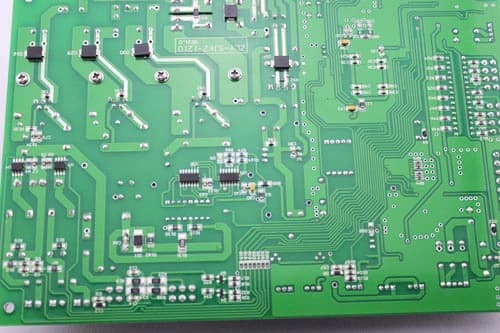

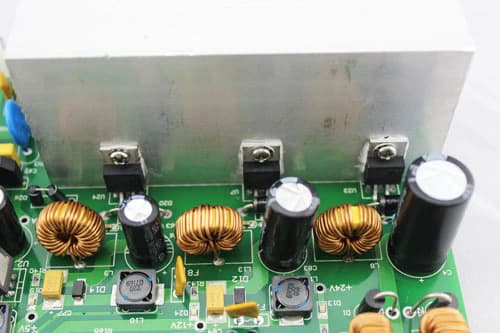

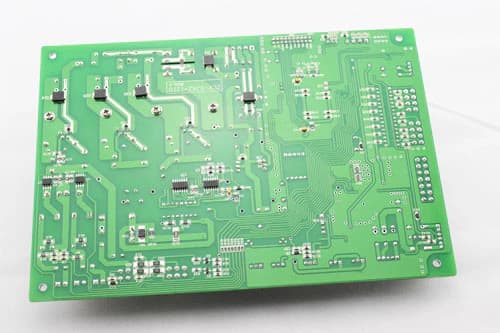

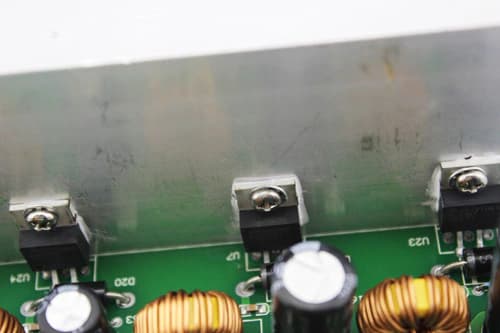

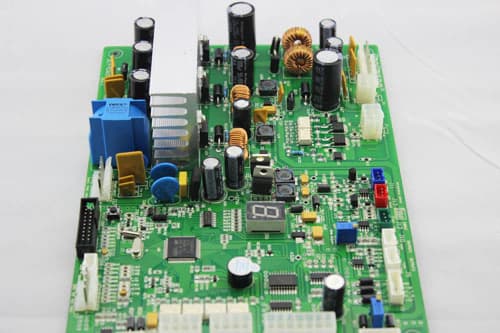

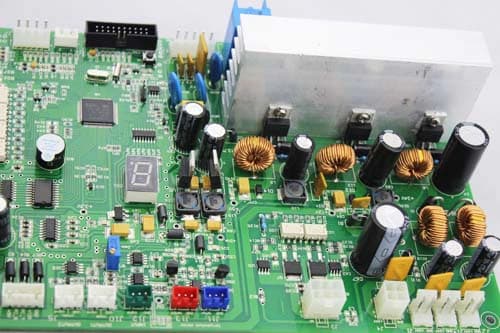

Image record
Photos are kept as production and project references.
